Ethereum 开发工具之 Foundry

一. Foundy 简介

Foundry是一套专为以太坊智能合约开发而设计的工具链，旨在提升开发者的工作效率和开发体验。Foundry提供了一系列功能强大的工具，支持快速的合约编写、测试、部署和调试。以下是Foundry合约开发工具的主要组成部分和功能介绍：

1.主要组成部分

1.1.Forge

Forge是Foundry的核心工具，用于编译、测试和部署智能合约。
它支持Solidity和Yul语言，提供了高效的编译器，并与EVM（以太坊虚拟机）紧密集成。
Forge允许开发者轻松运行单元测试、覆盖率测试和模拟测试环境。

1.2.Cast

Cast是Foundry的命令行工具，用于与以太坊区块链进行交互。
它支持常见的区块链操作，例如查询区块、交易、账户余额和发送交易。
Cast还支持脚本编写，帮助开发者自动化重复的区块链交互操作。

1.3.Anvil

Anvil是Foundry的本地开发节点，用于模拟以太坊网络环境。
它提供了一个轻量级的本地测试网络，支持快速的合约部署和测试。
Anvil允许开发者在本地调试合约，方便快速迭代和调整。

2.功能介绍

2.1.高效的编译器：

Foundry的编译器优化了合约的编译速度和生成的字节码质量。
支持Solidity和Yul，兼容主流的Solidity版本。

2.2.强大的测试框架：

Forge提供了全面的测试功能，包括单元测试、集成测试和覆盖率测试。
测试框架支持断言和模拟，帮助开发者验证合约逻辑的正确性。

2.3.调试和分析工具：

Foundry包含强大的调试功能，支持断点、变量监视和交易回溯。
开发者可以深入分析合约执行过程，找出潜在的问题和性能瓶颈。

2.4.便捷的部署和管理：

Forge支持一键部署合约到本地或远程的以太坊网络。
开发者可以轻松管理多个部署环境和合约版本。

2.5.脚本和自动化：

Cast工具支持编写脚本，自动化常见的区块链交互任务。
支持复杂的脚本逻辑，帮助开发者提高工作效率。

二.安装与简单命令

安装：Foundry可以通过命令行工具安装，首先需要安装Rust，然后通过Cargo 安装 Foundry：

curl -L https://foundry.paradigm.xyz | bash
foundryup

初始化项目：创建新的Foundry项目：

forge init your-project

编译合约：编译 Solidity 合约：

forge build

运行测试：运行测试用例：

forge test

部署合约

forge script script/xxx.s.sol:xxxScript --rpc-url <your_rpc_url> --private-key <your_private_key>

验证合约：步骤分为生成验证数据和执行验证命令

设置 EtherScan API Key

export ETHERSCAN_API_KEY=G2KQYXZEAV4H3GB1A1T6N832412D4648KH

执行验证命令

forge verify-contract --chain-id 11155111 0x599a22f498e5e0000440860ee4ff1dd8a5f06b66 src/contracts/OneDollarTreasure.sol:OneDollarTreasure

与区块链交互：使用Cast与区块链交互：

cast send --from <address> <contract-address> <method> <args>

三. 使用 Foundry 工具开发上线一元夺宝游戏

1.初始化项目

执行初始化项目命令

forge init one-dollar-treasure

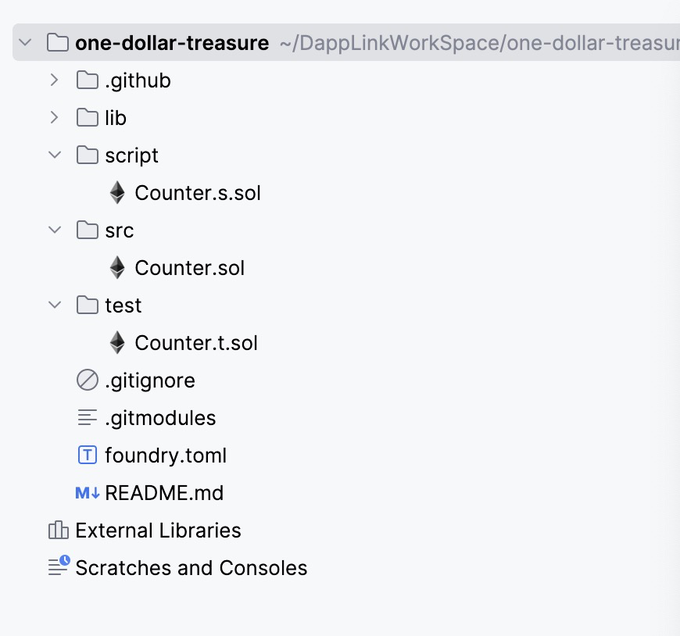

生成代码结构如下

lib目录：lib 目录下放置的是各种第三方的依赖库，例如 OZ 代码库
script 目录：放置部署脚本的目录
Src 目录：放置合约项目核心代码的目录
Test 目录：放置测试脚本的目录
foundry.toml：foundry 工程配置文件

2.代码编写

我们得到以上项目之后，需要将一元夺宝的项目开发出来，一元夺宝的逻辑是，每个人都投入 1USDT 进入合约，周期性开奖，达到周期之后开奖，选择一个幸运用户拿资金池的 98% 的 USDT，剩下的 2% 转入到项目方的国库合约做为平台运营手续费。

投注函数：用户投注函数

function betting(address better, uint256 amount) external {
    if (IERC20(tokenAddress).balanceOf(better) < amount) {
        revert NotEnoughToken(address(tokenAddress));
    }
    if (amount < 10 ** 6) {
        revert NotRightAmountToken(address(tokenAddress));
    }

    tokenAddress.safeTransferFrom(better, address(this), amount);
    if (roundBetting[roundNumber].totalAmount <= 0) {
        RoundBettingInfo memory rBInfo = RoundBettingInfo({
            totalAmount: amount,
            status:0
        });
        roundBetting[roundNumber] = rBInfo;
    } else {
        roundBetting[roundNumber].totalAmount += amount;
    }
    bettingMembers[roundNumber].push(better);
    emit BettingInfo(
        better,
        amount
    );
}

开奖函数，到达周期之后开奖并开启下一期

function lotteryAndGenerateNewRound(uint256 roundSeed) external {
    if (block.timestamp < roundEndTime[roundNumber]) {
        revert ThisPeriodNoExpiration();
    }
    address[] memory addressList = bettingMembers[roundNumber];

    address rewardAddress = addressList[roundSeed];
    uint256 rewardAmount = (roundBetting[roundNumber].totalAmount * 95) / 100;
    uint256 middleFee =  roundBetting[roundNumber].totalAmount - rewardAmount;

    if (roundSeed > addressList.length) {
        revert RoundNumberIsBig();
    }

    tokenAddress.safeTransferFrom(address(this), rewardAddress, rewardAmount);

    tokenAddress.safeTransferFrom(address(this), TheWeb3TreasureAddress, middleFee);

    emit LotteryAndGenerateNewRound(
        rewardAddress,
        rewardAmount,
        middleFee,
        roundNumber
    );

    roundNumber++;

    roundEndTime[roundNumber] = block.timestamp + periodTime;
}

完成代码如下：

// SPDX-License-Identifier: UNLICENSED
pragma solidity ^0.8.0;

import {Initializable} from "@openzeppelin/contracts-upgradeable/proxy/utils/Initializable.sol";
import "@openzeppelin/contracts-upgradeable/access/AccessControlUpgradeable.sol";
import "@openzeppelin/contracts-upgradeable/utils/PausableUpgradeable.sol";
import "@openzeppelin/contracts-upgradeable/utils/ReentrancyGuardUpgradeable.sol";
import "@openzeppelin/contracts/token/ERC20/utils/SafeERC20.sol";
import "@openzeppelin/contracts/token/ERC20/IERC20.sol";

import "./OneDollarTreasureStorage.sol";
import "forge-std/console.sol";

contract OneDollarTreasure is  Initializable, AccessControlUpgradeable, ReentrancyGuardUpgradeable, OneDollarTreasureStorage {
    address public constant TheWeb3TreasureAddress = address(0xe3b4ECd2EC88026F84cF17fef8bABfD9184C94F0);

    using SafeERC20 for IERC20;

    uint32 public periodTime;

    IERC20 public tokenAddress;

    function initialize(IERC20 _tokenAddress) public initializer {
        roundNumber = 1;
        roundAmount = 0;
        periodTime = 21 days;
        roundEndTime[roundNumber] = block.timestamp + periodTime;
        tokenAddress = _tokenAddress;
    }

    function betting(address better, uint256 amount) external {
        if (IERC20(tokenAddress).balanceOf(better) < amount) {
            revert NotEnoughToken(address(tokenAddress));
        }
        if (amount < 10 ** 6) {
            revert NotRightAmountToken(address(tokenAddress));
        }

        tokenAddress.safeTransferFrom(better, address(this), amount);
        if (roundBetting[roundNumber].totalAmount <= 0) {
            RoundBettingInfo memory rBInfo = RoundBettingInfo({
                totalAmount: amount,
                status:0
            });
            roundBetting[roundNumber] = rBInfo;
        } else {
            roundBetting[roundNumber].totalAmount += amount;
        }
        bettingMembers[roundNumber].push(better);
        emit BettingInfo(
            better,
            amount
        );
    }

    function lotteryAndGenerateNewRound(uint256 roundSeed) external {
        if (block.timestamp < roundEndTime[roundNumber]) {
            revert ThisPeriodNoExpiration();
        }
        address[] memory addressList = bettingMembers[roundNumber];

        address rewardAddress = addressList[roundSeed];
        uint256 rewardAmount = (roundBetting[roundNumber].totalAmount * 95) / 100;
        uint256 middleFee =  roundBetting[roundNumber].totalAmount - rewardAmount;

        if (roundSeed > addressList.length) {
            revert RoundNumberIsBig();
        }

        tokenAddress.safeTransferFrom(address(this), rewardAddress, rewardAmount);

        tokenAddress.safeTransferFrom(address(this), TheWeb3TreasureAddress, middleFee);

        emit LotteryAndGenerateNewRound(
            rewardAddress,
            rewardAmount,
            middleFee,
            roundNumber
        );

        roundNumber++;

        roundEndTime[roundNumber] = block.timestamp + periodTime;
    }

    function getBettingRound(uint256 roundNumber) external returns (RoundBettingInfo memory) {
        return roundBetting[roundNumber];
    }
}

3.测试

编写 testBetting 测试脚本，由于该项目是做示范讲解，因此我们不编写全量的测试代码，只做简单示范

// SPDX-License-Identifier: UNLICENSED
pragma solidity ^0.8.13;

import "@openzeppelin/contracts/proxy/transparent/ProxyAdmin.sol";
import "@openzeppelin/contracts/proxy/transparent/TransparentUpgradeableProxy.sol";
import "@openzeppelin/contracts/token/ERC20/utils/SafeERC20.sol";


import "forge-std/Test.sol";
import "forge-std/console.sol";
import "forge-std/Script.sol";
import "../src/contracts/OneDollarTreasure.sol";
import "../src/access/proxy/Proxy.sol";

import "./DappLinkToken.sol";


contract OneDollarTreasureTest is Script, Test {
    using SafeERC20 for IERC20;

    OneDollarTreasure  public oneDollarTreasure;
    DappLinkToken public dappLinkToken;

    Proxy public proxyOneDollarTreasure;
    Proxy public proxyDappLinkToken;

    function setUp() external {
        vm.startBroadcast();
        address admin = msg.sender;

        dappLinkToken = new DappLinkToken();
        proxyDappLinkToken = new Proxy(address(dappLinkToken), address(admin), "");
        DappLinkToken(address(proxyDappLinkToken)).initialize(admin);

        oneDollarTreasure = new OneDollarTreasure();
        proxyOneDollarTreasure = new Proxy(address(oneDollarTreasure), address(admin), "");
        OneDollarTreasure(address(proxyOneDollarTreasure)).initialize(IERC20(address(proxyDappLinkToken)));

        vm.stopBroadcast();
    }

    function testBetting() public {
        uint256 amount = 10 ** 6;
        vm.prank(msg.sender);
        DappLinkToken(address(proxyDappLinkToken)).approve(address(proxyOneDollarTreasure), amount * 10);

        vm.prank(msg.sender);
        OneDollarTreasure(address(proxyOneDollarTreasure)).betting(msg.sender, amount);

        OneDollarTreasure.RoundBettingInfo memory rBinfoItme = OneDollarTreasure(address(proxyOneDollarTreasure)).getBettingRound(1);

        assertEq(rBinfoItme.totalAmount, 1000000);
        assertEq(rBinfoItme.status, 0);
    }
}

执行测试

forge test -vv

输出结果

[⠊] Compiling...
[⠒] Compiling 2 files with Solc 0.8.24
[⠢] Solc 0.8.24 finished in 1.03s
Compiler run successful!

Ran 1 test for test/OneDollarTreasure.sol:OneDollarTreasureTest
[PASS] testBetting() (gas: 160879)
Suite result: ok. 1 passed; 0 failed; 0 skipped; finished in 767.08µs (94.92µs CPU time)

Ran 1 test suite in 112.23ms (767.08µs CPU time): 1 tests passed, 0 failed, 0 skipped (1 total tests)

4.部署

编写部署脚本

// SPDX-License-Identifier: UNLICENSED
pragma solidity ^0.8.13;

import "@openzeppelin/contracts/proxy/transparent/ProxyAdmin.sol";
import "@openzeppelin/contracts/proxy/transparent/TransparentUpgradeableProxy.sol";

import {Script, console} from "forge-std/Script.sol";
import "../src/contracts/OneDollarTreasure.sol";
import "../src/access/proxy/Proxy.sol";

contract OneDollarTreasureScript is Script {
    OneDollarTreasure  public oneDollarTreasure;

    Proxy public proxyOneDollarTreasure;

    function run() public {
        vm.startBroadcast();
        address admin = msg.sender;

        IERC20 tokenAddress = IERC20(address(0xe3b4ECd2EC88026F84cF17fef8bABfD9184C94F0));

        oneDollarTreasure = new OneDollarTreasure();
        proxyOneDollarTreasure = new Proxy(address(oneDollarTreasure), address(admin), "");
        OneDollarTreasure(address(proxyOneDollarTreasure)).initialize(tokenAddress);

        vm.stopBroadcast();
    }
}

将代码部署到 sepolia 网络

部署命令

forge script script/OneDollarTreasure.s.sol:OneDollarTreasureScript --rpc-url $RPC_URL --private-key $PRIVKEY

返回值

[⠊] Compiling...
[⠘] Compiling 1 files with Solc 0.8.24
[⠃] Solc 0.8.24 finished in 748.28ms
Compiler run successful!
Script ran successfully.

## Setting up 1 EVM.

==========================

Chain 11155111

Estimated gas price: 52.628255844 gwei

Estimated total gas used for script: 2232183

Estimated amount required: 0.117475898014627452 ETH

==========================

SIMULATION COMPLETE. To broadcast these transactions, add --broadcast and wallet configuration(s) to the previous command. See forge script --help for more.

Transactions saved to: /Users/guoshijiang/theweb3/one-dollar-treasure/broadcast/OneDollarTreasure.s.sol/11155111/dry-run/run-latest.json

Sensitive values saved to: /Users/guoshijiang/theweb3/one-dollar-treasure/cache/OneDollarTreasure.s.sol/11155111/dry-run/run-latest.json

在 sepolia 网络上验证合约代码

命令行

export ETHERSCAN_API_KEY=TNSTBJQHXQV8FJDC8BXEYCQXJP39TJ3U7U
guoshijiang@192 one-dollar-treasure % forge verify-contract --chain-id 11155111 0x599a22f498e5e0000440860ee4ff1dd8a5f06b66 src/contracts/OneDollarTreasure.sol:OneDollarTreasure

返回值

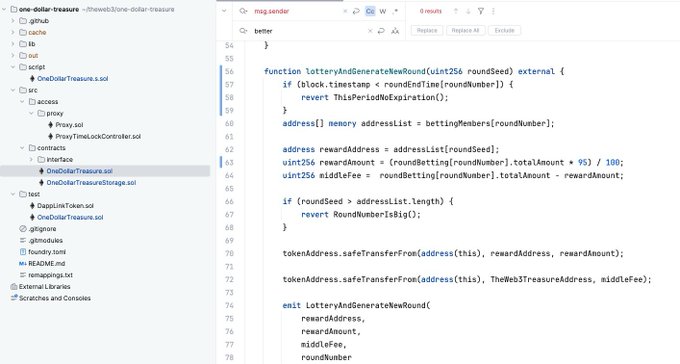

5.项目完整截图

我们可以看到，这里和上面的代码相比多了一个 remappings.txt 文件，remappings.txt 文件用于定义路径重映射，以简化和管理项目中的导入路径。这对于大型项目或依赖于外部库的项目尤其有用，因为它允许开发者通过短路径或别名引用库和模块，而不是使用长且复杂的相对路径

本项目的 remappings.txt 代码如下：

@openzeppelin/contracts-upgradeable/=lib/openzeppelin-contracts-upgradeable/contracts/
@openzeppelin/contracts/=lib/openzeppelin-contracts/contracts/
ds-test/=lib/forge-std/lib/ds-test/src/
erc4626-tests/=lib/openzeppelin-contracts-upgradeable/lib/erc4626-tests/
forge-std/=lib/forge-std/src/
openzeppelin-contracts-upgradeable/=lib/openzeppelin-contracts-upgradeable/
openzeppelin-contracts/=lib/openzeppelin-contracts/

remappings.txt 文件具有一下几个作用

路径别名： remappings.txt 可以将复杂的路径映射到更简单的别名，使得代码中的导入路径更简洁易读。
依赖管理：对于使用外部库的项目，remappings.txt 可以统一管理这些库的路径，避免在代码中硬编码路径。
提升可读性：简化后的路径使得代码更易于阅读和维护，特别是在大型项目中，路径重映射可以显著提升代码的整洁度。

6.cast 交互测试

Cast 命令投注

cast send --rpc-url $RPC_URL --private-key $PRIVATE_KEY $CONTRACT_ADDRESS " betting(address,uint256)" 0xe3b4ECd2EC88026F84cF17fef8bABfD9184C94F0 10000000

Cast 查看投注信息

cast call --rpc-url $RPC_URL "getBettingRound(uint256)" 1
